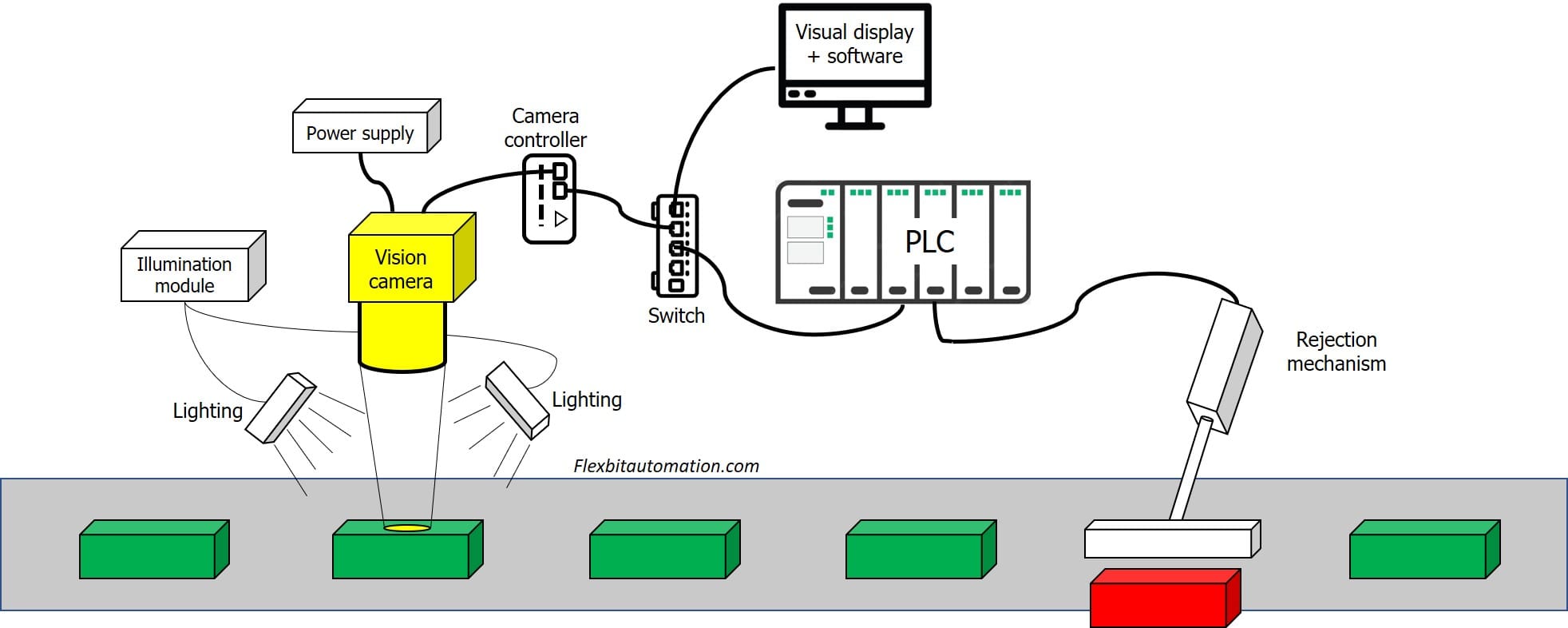

In a machine vision system, lighting is one of the most important components. A machine vision system may use a high-resolution camera and the latest AI model, but if the lighting is poor, your system simply won’t work.
The way light interacts with surfaces, edges, textures, and colors determines what the camera captures, and what an AI model can learn. If the illumination is inconsistent (too dark, too bright, too reflective, or full of shadows) the vision system may not perform well.
Machine vision lighting is all about maximizing contrast where it matters and minimizing it where it doesn’t. The goal is to produce clean, consistent images that vision AI can analyze reliably.
In this guide, we break down core lighting techniques, filter types, and practical considerations you need to design high-performance vision systems for automation, quality inspection, robotics, or AI-powered manufacturing workflows. For guidance setting up your machine vision lighting system talk to an AI expert.
Types of Lighting and Illumination Techniques for Computer Vision
Machine-vision systems use different lighting setups. The goal is to maximize contrast on the features of interest while minimizing unwanted variations. Following are the key geometries that produce a different interaction between light and the object’s surface.

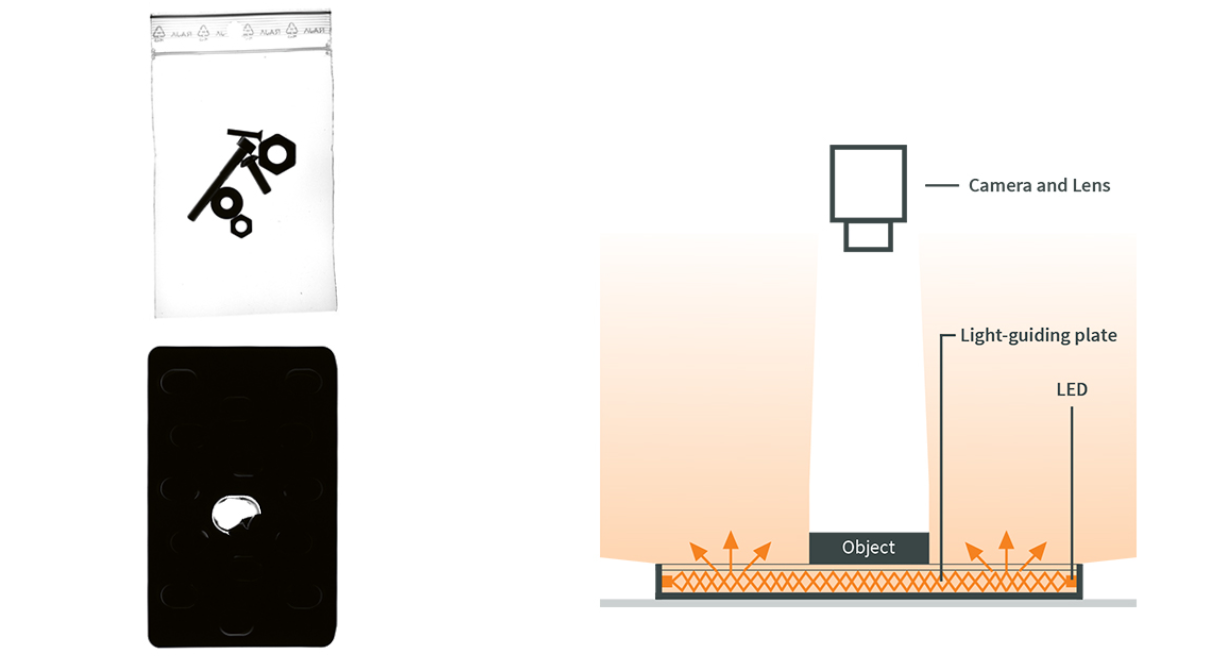

Backlighting
Backlighting is one of the most effective and widely used lighting techniques in machine vision. In this setup, the light source is placed behind the object so the camera looks directly toward the bright background. This creates extremely high contrast, producing dark, sharp silhouettes that make it easy to detect outlines and measure shapes with high precision.
Backlighting can be useful in applications for checking part presence or absence, verifying holes or gaps, inspecting edges with sub-pixel accuracy, and performing precise gauging tasks. It is also ideal for confirming part orientation in pick-and-place or robotic systems.
Backlighting works well for both opaque and semi-transparent objects. Opaque items appear as clear silhouettes for size and shape checks, while translucent materials reveal defects or variations in thickness. Its reliability and instant contrast make it a preferred choice for high-accuracy industrial and pharmaceutical inspections.
Bright Field Lighting (Directional/Partial)
Bright field lighting is the most common type of illumination used in machine vision. It works like a normal lamp or flashlight shining on an object from the same direction as the camera. This type of lighting makes surfaces that face the light appear bright and makes tilted or uneven areas appear darker. Because of this natural contrast, bright field lighting is very effective for showing surface details such as scratches, edges, markings, and texture variations. Bright field lighting can be of following types:

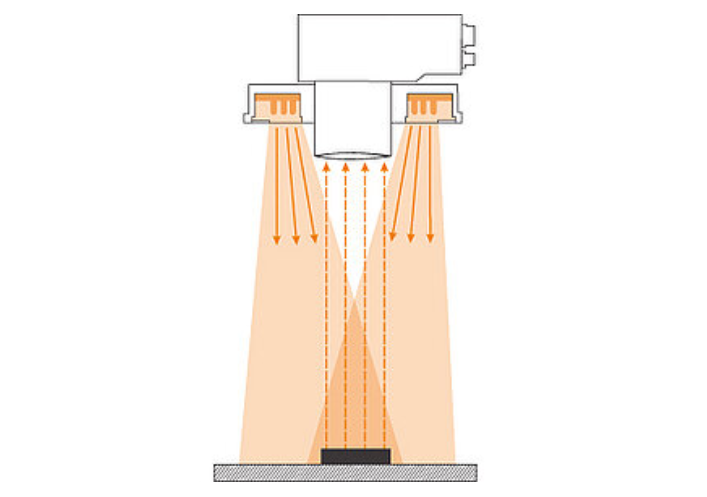

On-Axis Ring Lighting
On-axis ring lighting is the most popular bright-field option because the light is built directly around the camera lens. This design makes installation simple and provides bright, even illumination directly in front of the camera. It works well for small, flat parts and is often tilted slightly to avoid hotspots. Ring lights give clear, uniform lighting that helps reveal surface details without requiring complex setup.

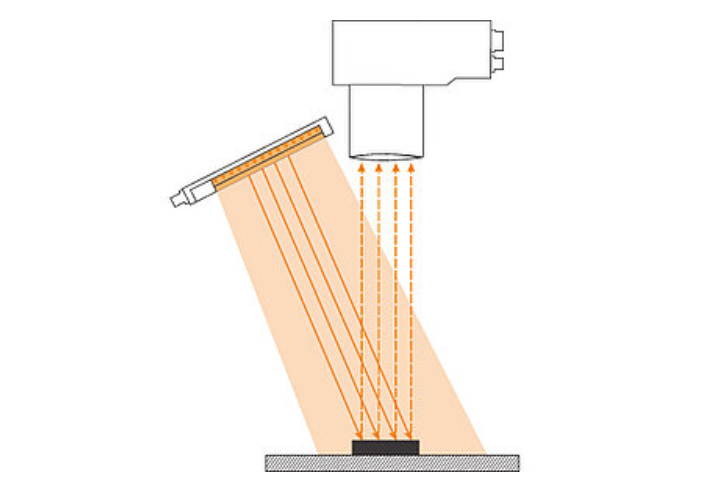

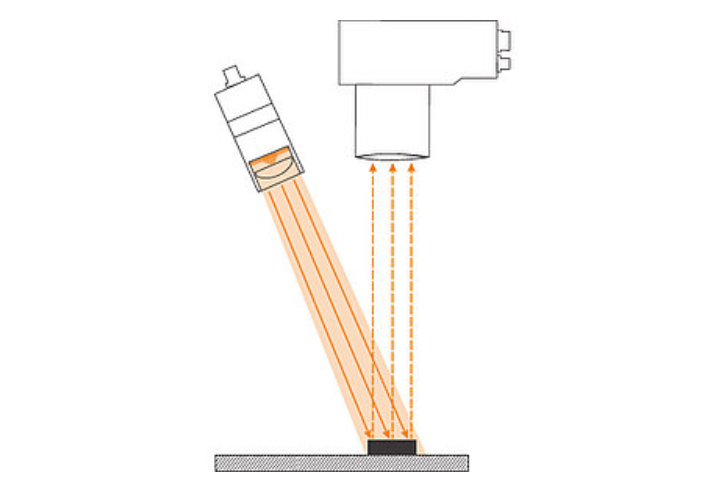

Off-Axis Bright Field
Off-axis bright-field lighting uses a separate LED light positioned roughly 15° away from the camera’s viewing direction. While the camera remains perpendicular to the object, the angled light creates small shadows that expose height differences, raised edges, and subtle surface textures. This makes it ideal for detecting bumps, steps, grooves, or other topographic features that straight-on lighting may hide.
Bar Lighting
Bar lighting uses long, narrow lights to illuminate specific areas or edges of an object. Multiple bar lights can be combined to create lighting from different directions when needed. Depending on placement, bar lights can reduce reflections on shiny parts or increase contrast on matte surfaces. They are especially useful for larger objects or situations where light needs to reach across longer distances.

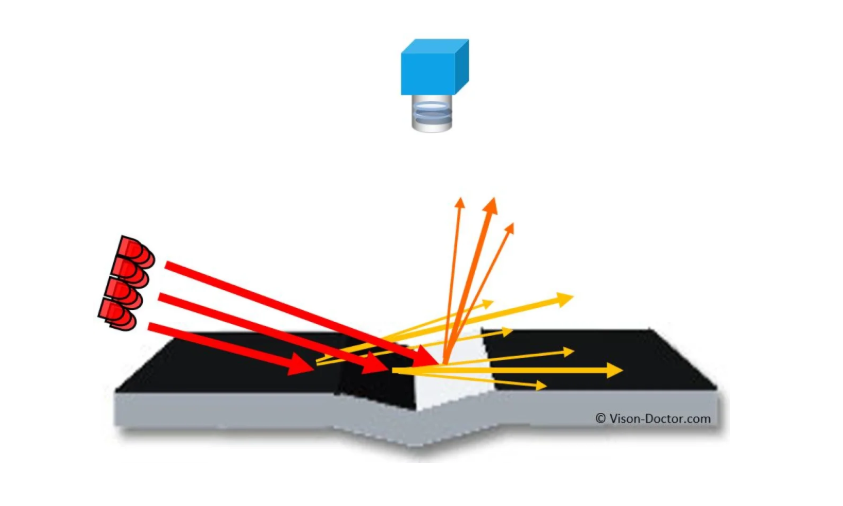

Dark Field Lighting
Dark field lighting directs light onto the object from a very low angle, typically 45° or more, so that most of the light reflects away from the camera. Only raised edges, scratches, or textured areas catch the light and appear bright, while flat surfaces remain dark. Because of this strong contrast, dark field illumination is highly effective for inspecting reflective parts, revealing fine surface defects, highlighting engraved or embossed markings, detecting contours and height variations, and supporting OCR on textured materials. This technique works best when the light source is placed very close to the object, making subtle topographic features stand out clearly.
Diffuse Lighting (Full Bright Field)
Diffuse lighting is a type of illumination where light is scattered in many directions before it reaches the object, creating soft, even lighting with no harsh shadows or strong reflections. Instead of coming from one direction, the light wraps around the object from all sides, making the entire surface uniformly bright. This helps the camera capture clear images of shiny, curved, or uneven surfaces without glare, hotspots, or dark areas. Following are the main types:

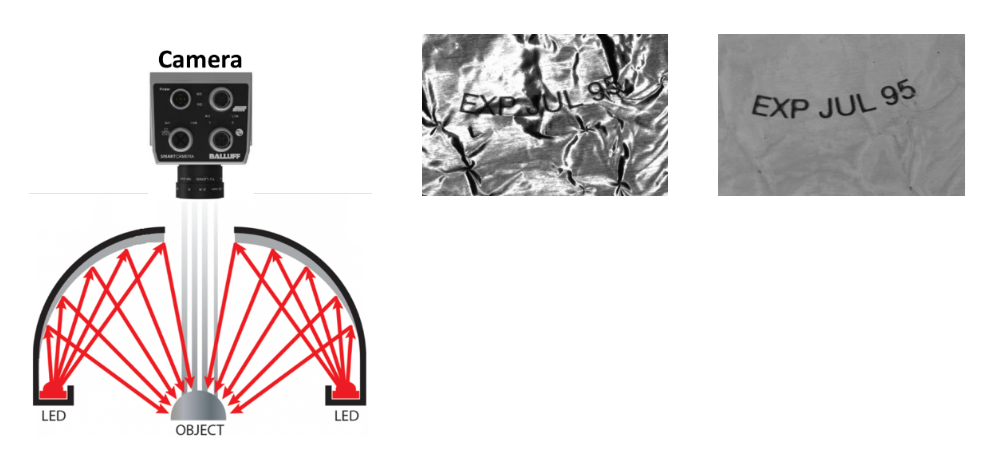

Dome Lighting (Diffuse Dome)
Dome lighting uses a hollow, dome-shaped structure lined with LEDs. The camera looks through an opening at the top while the dome scatters light evenly over the object. This creates very uniform illumination, removing hotspots and giving curved or reflective surfaces a smooth, matte appearance. It is commonly used for inspecting automotive components, plastic parts, and other objects where reflections make standard lighting unreliable.

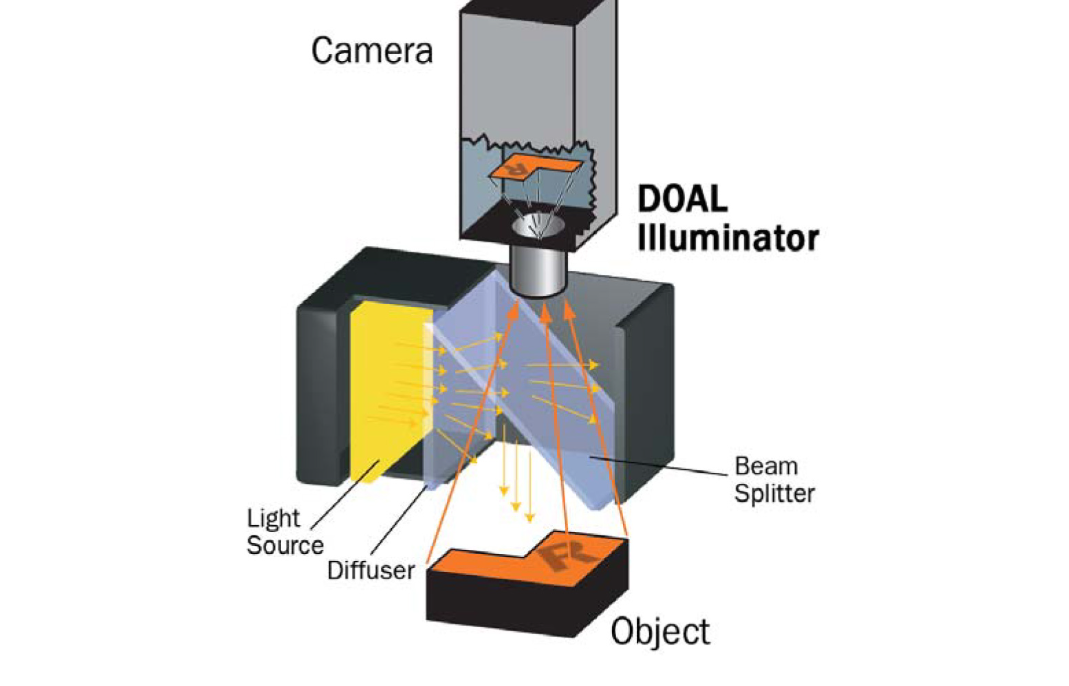

Diffuse On-Axis Lighting (DOAL)
Diffuse on-axis lighting uses a beam splitter to send light straight down along the same path as the camera’s optical axis. This produces a bright, glare-free image of flat, reflective surfaces by combining direct and diffuse illumination. DOAL is typically used for applications such as inspecting wafers, CDs/DVDs, and semiconductor components where surface uniformity and detail visibility are critical.

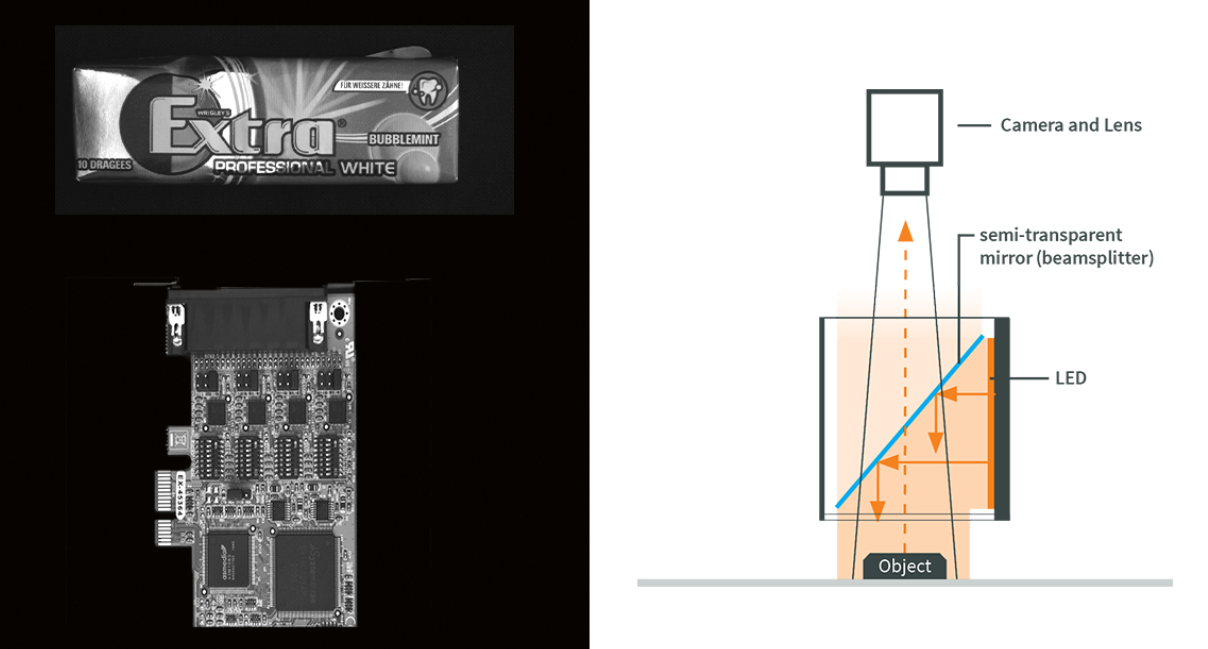

Coaxial Lighting
Coaxial lighting is a special type of bright-field illumination where light is directed straight down onto the object along the same path as the camera’s view. A beam splitter placed at a 45° angle redirects the light toward the surface, while the camera looks through the same beam splitter. This creates perfectly even shadow-free lighting that makes flat, reflective surfaces appear uniformly bright without glare or hotspots. Because the light hits the object perpendicularly, fine details and surface variations on shiny materials are easier to detect.
Coaxial lighting is ideal for inspecting polished metals, glass, mirrors, and other reflective surfaces. It is commonly used for reading text or codes on shiny parts, inspecting semiconductor wafers, and detecting subtle texture differences where shadow-free illumination is essential.

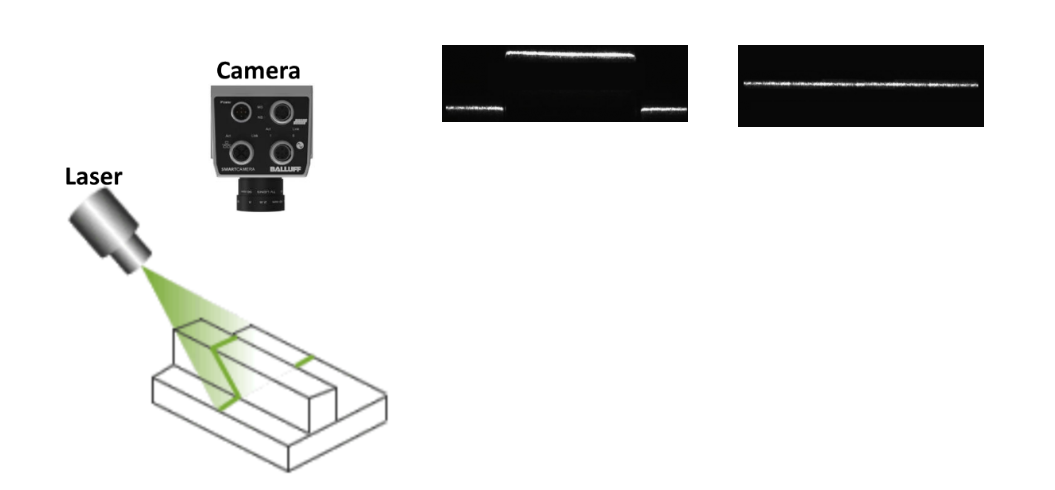

Structured Laser Line Lighting
Structured laser line lighting projects a thin, high-intensity laser line onto the surface of an object to measure its shape, height, or contours. When the laser line strikes the object, it bends or shifts depending on surface geometry. A camera positioned at an angle captures this deformation, and software converts the changes into precise 3D information.
This technique is extremely useful for detecting height variations, measuring dimensions, inspecting edges, and creating 3D profiles of parts. Because the laser line provides strong contrast and a very narrow illumination pattern, it works reliably even on dark, complex, or textured surfaces where standard lighting fails. Structured laser lighting is widely used in 3D inspection, defect detection, robot guidance, and applications that require accurate height or shape measurement.
Types of Optical Filters in Machine Vision
Optical filters are small components placed in front of the camera or light source to control which wavelengths of light enter the vision system. They are important because they remove unwanted light, reduce glare, and improve contrast. This helps the camera focus only on the wavelengths that highlight the features you want to inspect. Filters are commonly used in machine vision systems where lighting conditions are difficult to control or where specific colors, reflections, or materials require selective wavelength filtering.

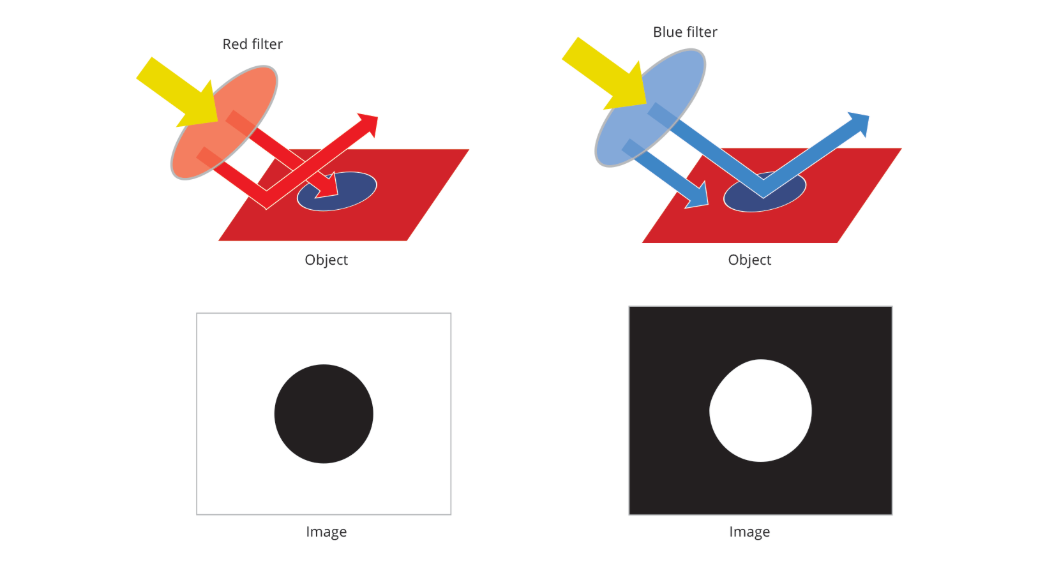

The example image above shows how different filters change what the camera sees. A red filter highlights features that reflect red light, while a blue filter does the same for blue light, making certain details appear clearly and others disappear.
By choosing the right type of optical filter, you can control which wavelengths reach the camera and enhance the features that matter most for your inspection.
Bandpass Filter
A bandpass filter allows only a narrow range of wavelengths (one specific color of light) to reach the camera and blocks all other light. This helps remove ambient lighting effects and creates strong, consistent contrast. Bandpass filters are often paired with LED lights of the same color to make features stand out clearly, even in challenging lighting environments.

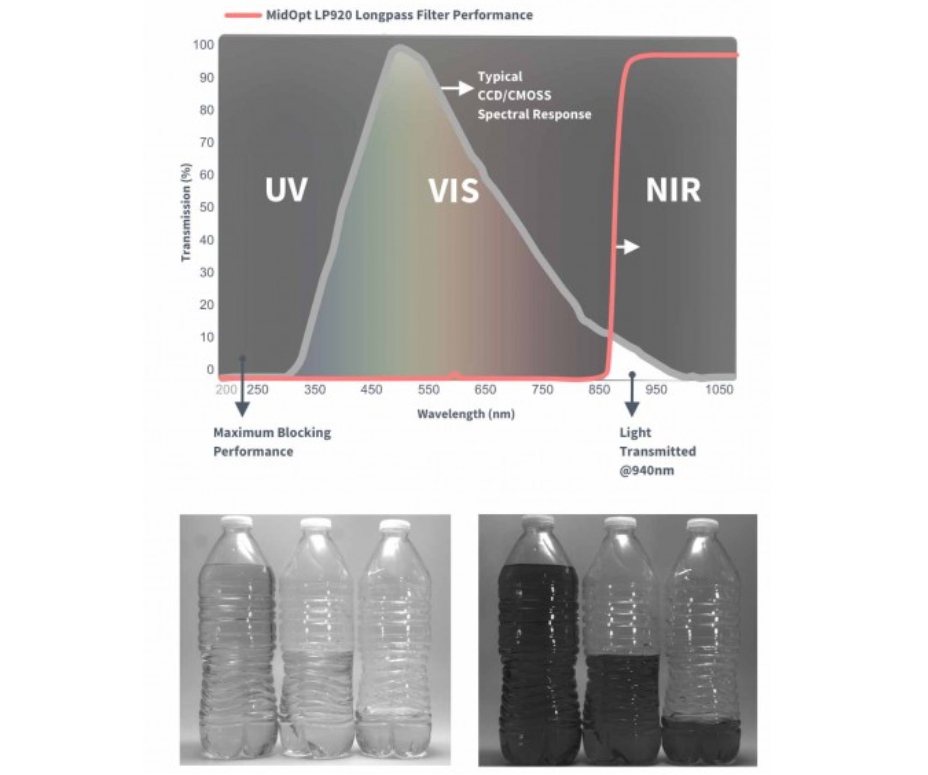

Longpass Filter
A longpass filter lets longer wavelengths (such as red or infrared) pass through while blocking shorter wavelengths (like blue or green). These filters are useful for inspecting materials that respond better to IR light, reducing glare from reflective surfaces, or seeing deeper into translucent materials. Longpass filters enhance visibility when normal lighting cannot reveal enough detail.
Shortpass Filter
A shortpass filter allows shorter wavelengths (blue or UV light) to pass and blocks longer wavelengths. This makes it ideal for UV inspections, fluorescence imaging, and inspections where you need crisp detail on fine textures or small defects. By blocking infrared light, shortpass filters prevent image washout and help maintain strong contrast, even under bright light.
Polarizing Filter
A polarizing filter removes glare and reflections from shiny surfaces like metal, plastic, or glass. It works by allowing only light waves vibrating in one direction to pass through. This reveals surface details such as scratches, printed text, or patterns that would normally be hidden by bright reflection. Pairing a polarizer on the camera with one on the light source (cross-polarization) gives the strongest glare reduction.
Neutral Density (ND) Filter
A neutral density filter reduces the overall amount of light reaching the camera without changing color. It works like sunglasses for your vision system. ND filters are used when the scene is too bright, the light source is very strong, or the camera needs a longer exposure time. They help prevent overexposure and maintain image sharpness in high-intensity lighting setups.
NIR (Near-Infrared) Cut / IR Cut Filter
An IR-cut filter blocks infrared wavelengths and allows only visible light to pass through. Most color cameras include an IR-cut filter because IR light can distort color accuracy and reduce contrast.
UV Filter
A UV filter blocks ultraviolet light while allowing visible light to pass. UV can cause haze or unwanted glow on some materials, so blocking it can produce a cleaner, sharper image. UV filters are commonly used when natural sunlight or UV-based inspection environments introduce noise or contrast issues.
Color Filters (Red, Green, Blue Filters)
Basic color filters allow only one primary color to reach the sensor. They are used when certain features show the best contrast under a specific color. For example, red light might highlight surface defects on metal, while blue light brings out texture on plastics. Using a color filter simplifies the image and improves algorithm performance.
Considerations for Optimal Lighting
Designing lighting for a machine vision system is not just about choosing a lamp, it requires understanding the environment, the object, and how different types of light interact with materials. Good lighting must create strong contrast, stay consistent, and work reliably within the physical limits of the inspection setup.
Immediate Inspection Environment
The space around the camera and object directly affects what lighting can be used. Machines, robots, conveyors, or fixtures may limit how close a light can be placed, how large it can be, or which angles are possible. Working distance also influences brightness, longer distances require stronger or larger lights. High-speed production lines often need powerful lighting or strobed illumination to freeze motion.
Ambient light is another major variable, factory lighting can reduce contrast or introduce glare. To manage this, engineers use strobing, protective enclosures, or optical filters that block unwanted wavelengths. Enclosures are especially useful when lighting conditions cannot be fully controlled.
Sample / Light Interactions
Every material reacts differently to light. Shiny, reflective surfaces may produce glare under directional lighting, while matte surfaces scatter light evenly and are easier to illuminate. Curved objects often require diffuse lighting to avoid bright spots, whereas textured or topographic surfaces benefit from low-angle dark-field lighting that highlights edges and height variations. Transparent or translucent materials may need backlighting or specific wavelengths to reveal internal features. Light can be reflected, absorbed, or transmitted depending on the material, and choosing the right wavelength can dramatically improve contrast.
Color and Wavelength Considerations
Different wavelengths reveal different characteristics of an object. Matching the illumination color to the feature you want to highlight can greatly improve detection. Blue light is good for fine detail, red light enhances outlines, IR light can penetrate certain materials, and UV illumination can reveal fluorescence or invisible markings. For color inspection, stable white light with a consistent color temperature is essential. Using monochrome cameras with colored LEDs often produces better contrast than relying on white light and a color sensor.
Selecting the Right Illumination
A systematic approach helps ensure a reliable lighting setup:
- Identify the feature you need to detect such as edges, surface defects, presence/absence, print, color, or 3D shape.
- Evaluate your environment, including space limitations, working distance, and ambient light. Enclosures and filters help stabilize conditions.
- Analyze your sample, considering its reflectivity, shape, and material. Choose lighting geometry and wavelength based on these properties.
- Use optical filters to block unwanted light, reduce glare, and improve contrast.
- Test multiple lighting geometries, as the best solution is often discovered by comparing several options side by side.
Roboflow Simplifies Machine Vision Lighting

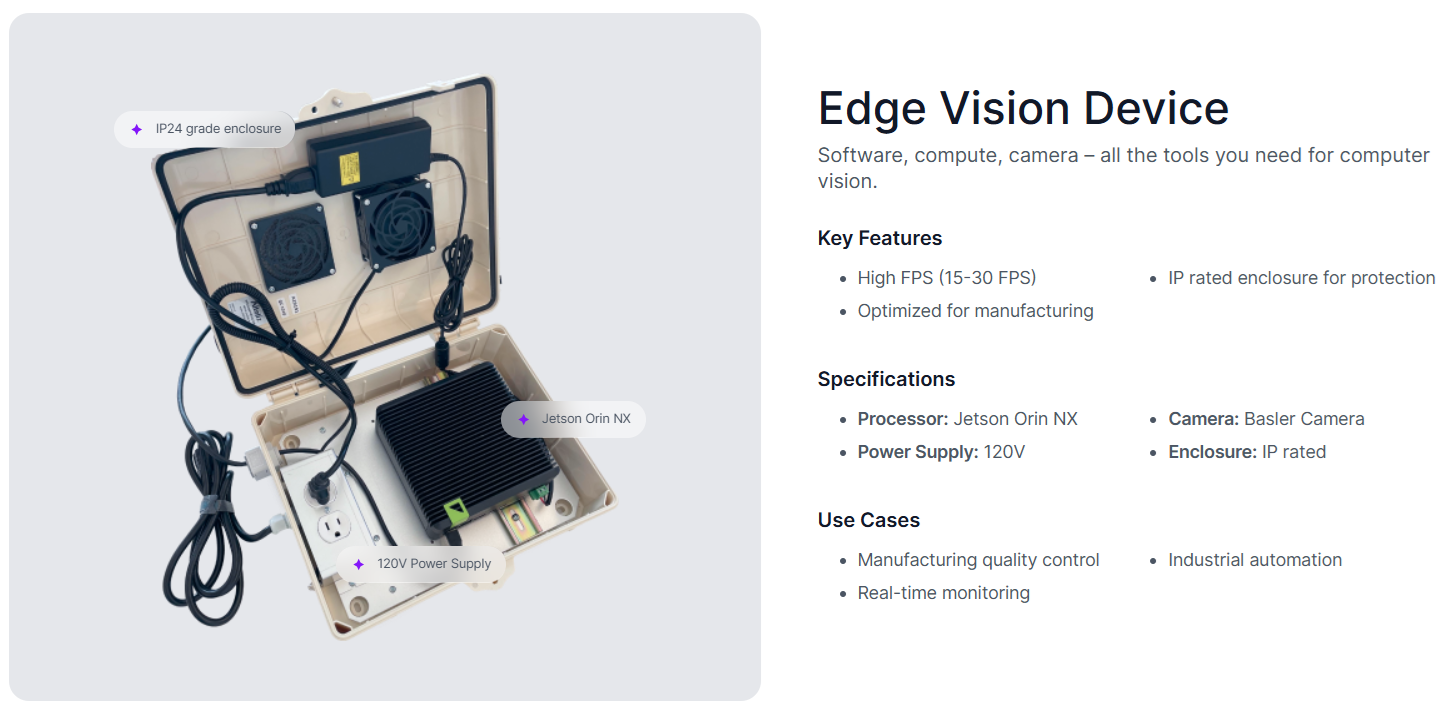

Roboflow Edge Devices and AI experts combine cameras, compute, lighting, and AI software into a single, ready-to-deploy system.
AI That Reduces Lighting Complexity
Traditional vision systems rely heavily on perfect lighting, but deep learning models built with Roboflow can adapt to real-world variation. Models trained on diverse examples can handle changing ambient light, reflective surfaces, shadows, and shifts in color temperature. This reduces the need for specialized strobes, strict enclosures, or expensive optical setups. AI learns to focus on the features that matter.
Flexible Deployment Options
Roboflow lets you deploy your system at the edge, in the cloud, or as a hybrid.
- Edge devices provide fast, local inference even during network outages.
- Cloud enables centralized monitoring, scaling, and batch analysis.
- Hybrid setups give you real-time decisions on-site with more advanced analytics running in the cloud.
This flexibility makes lighting management easier, since processing can happen where conditions are most stable.
Works With Your Existing Cameras and Lighting
Roboflow Edge Devices integrate with most industrial cameras and lighting systems. Using Roboflow you can train AI models to work with your current setup that can save time and reduce cost. The platform also connects easily to PLCs, HMIs, conveyor systems, and factory networks.
Built for Real Production Environments
From factory floors to outdoor yards and remote field sites, Roboflow edge vision devices are designed to operate reliably under real industrial conditions, supporting 24/7 inspection, automated sorting, inventory tracking, and equipment monitoring even when lighting naturally varies throughout the day.
Fast Workflow Building and Model Deployment
With Roboflow Workflows, you can visually build inspection pipelines without needing to write code. You can connect multiple models, add business rules, integrate PLC signals, and test everything in a sandbox before deploying to an edge device. This dramatically reduces setup time and eliminates the trial-and-error often required in lighting design.
Machine Vision Lighting Conclusion
Machine-vision lighting is about giving your camera the cleanest, most consistent view of the features that matter. Each lighting geometry and filter type shapes how the system sees surfaces, textures, and materials. When lighting is designed well, Vision AI becomes far more accurate and reliable. Roboflow can build inspection systems that stay stable even as real-world conditions change. Talk to an AI expert today.
